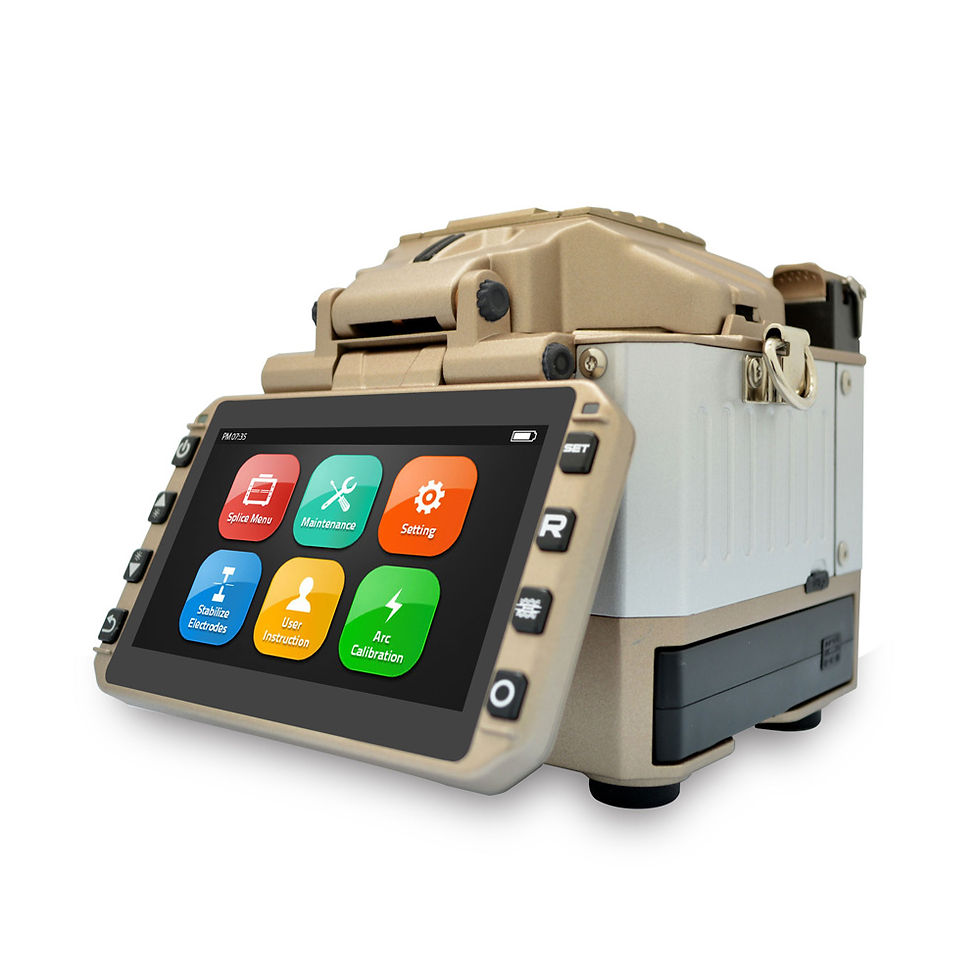

Fiberfox Mini 6S

5. Fiberfox 6S1
5. Fiberfox 6S1

press to zoom
5. Fiberfox 6S2
5. Fiberfox 6S2

press to zoom
5. Fiberfox 6S3
5. Fiberfox 6S3

press to zoom
5. Fiberfox 6S1
5. Fiberfox 6S1

press to zoom
1/4
  • The smallest core alignment fusion splicer

  •  Splicing time 7sec./tube heating time 18sec.

  •  Weight – 1.39 Kg

  •  Long-life battery for 400 splice and heat cycles

  •  Splice loss 0.01

    KEY FEATURES

    Standard Package:

  •  Mini 6S splicer

  •  Cleaver soft case

  •  Mini 50G cleaver

  •  AC adapter

  •  AC power cord

  •  USB cable

  •  Car cigar cable

  •  Cooling Tray

  •  2 Battery Pack

  •  Carrying case with work table

  •  Spare electrode

  •  Hand strap

  •  Quick reference guide

  •  SOC heater block

  •  SOC holder

  •  shoulder strap

  •  User manual CD

  •  Hand Carrying case

    OVERVIEW



  • Applicable fibers : Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), NIF (G.657).25mm, .9 mm,2.4 mm, 3mm, Flat indoor cable

  •  Cladding dia./ Sheath dia.: 80-150μm / 100- 1000um

  •  Splice time :12 sec/ 7sec(SM quick mode)

  •  Tube heating time : 18 sec

  •  Splice / heating per battery full charge : 200 cycles(splice and heat)

  •  Fiber View : 2 CCD camera with 4.3” color LCD

  •  Splice mode / heating mode : 70

  •  Typical splice loss : 0.02dB (SM), 0.01dB(MM), 0.04dB(DS) and 0.04dB(NZDS)

  •  Splice result storage: up to 2000 records and 2000 splice images

  •  Electrode life: 3500 splices

  •  Operating condition : Altitude : 0 to 5,000m above sea level, Wind : 15m/sec, Temperature : -10 to 50deg C, Hμmidity : 0 to 95%RH, non-dew

  •  Resistance Features : Shock resistance, Dust resistance, Rain resistance
